Rumah ProdukTungsten Carbide Nozzle450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity

450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity

Detail produk:
Tempat asal: Zhuzhou, Cina;
Nama merek: Sanxin
Nomor model: SX1266
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2
Waktu pengiriman: 5-25 hari
Syarat-syarat pembayaran: T/T, Western Union, l/c
Hubungi sekarang
  • Informasi Detail
  • Deskripsi Produk

Informasi Detail
isi: toilet Ukuran: OEM diterima
Nilai: Yg6, yg6x, yg8, yg10x; Lubang dalam: Disesuaikan
Konduktivitas termal: 110 w/mk Produsen: Ya
Keuntungan: Presisi tinggi ketahanan aus yang baik Komoditi: Nozzle Karbida Tungsten
Presisi: Presisi tinggi Tipe nosel: Lubang Lurus
Permukaan akhir: Dipoles
Menyoroti:

450µm tungsten carbide nozzle

,

high thermal conductivity nozzle

,

tungsten carbide processing nozzle

Deskripsi Produk

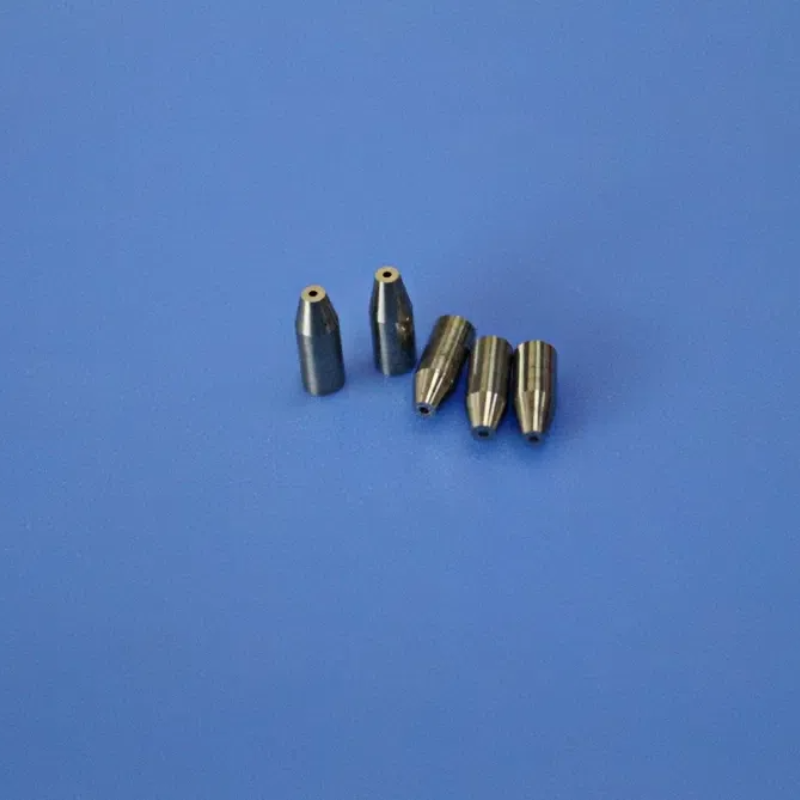

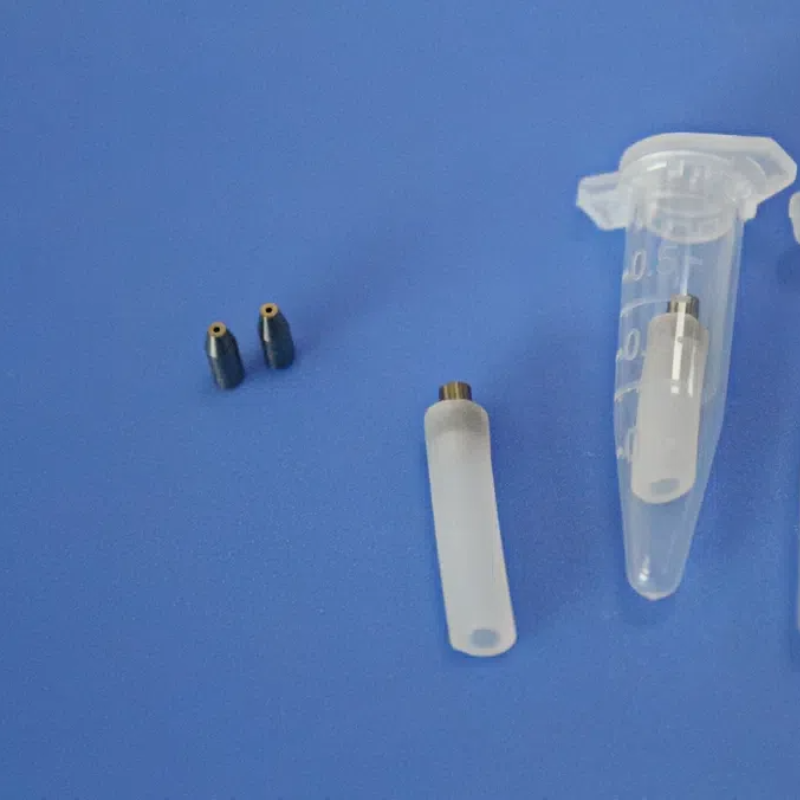

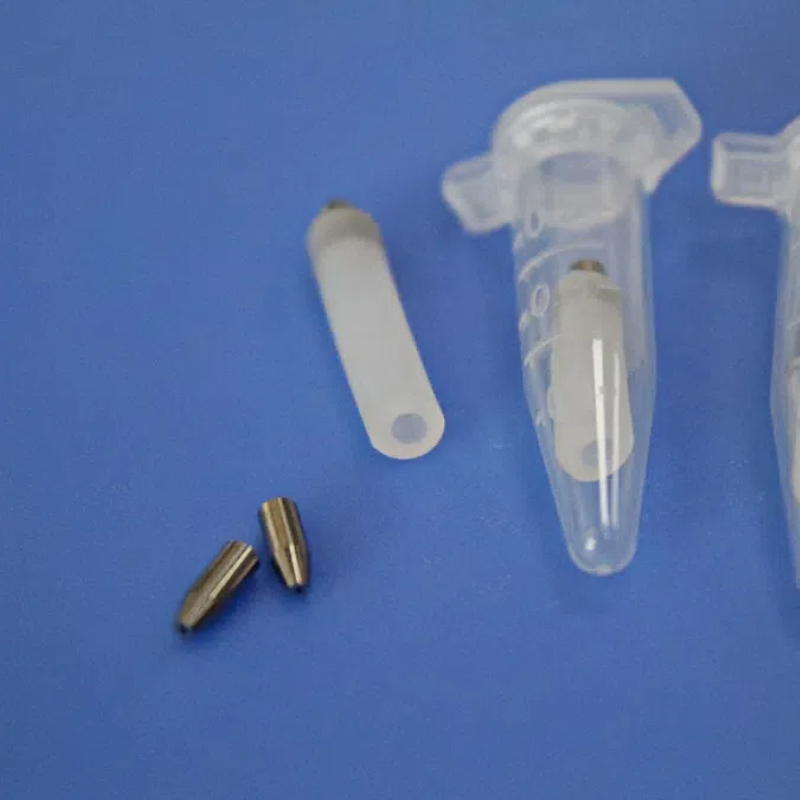

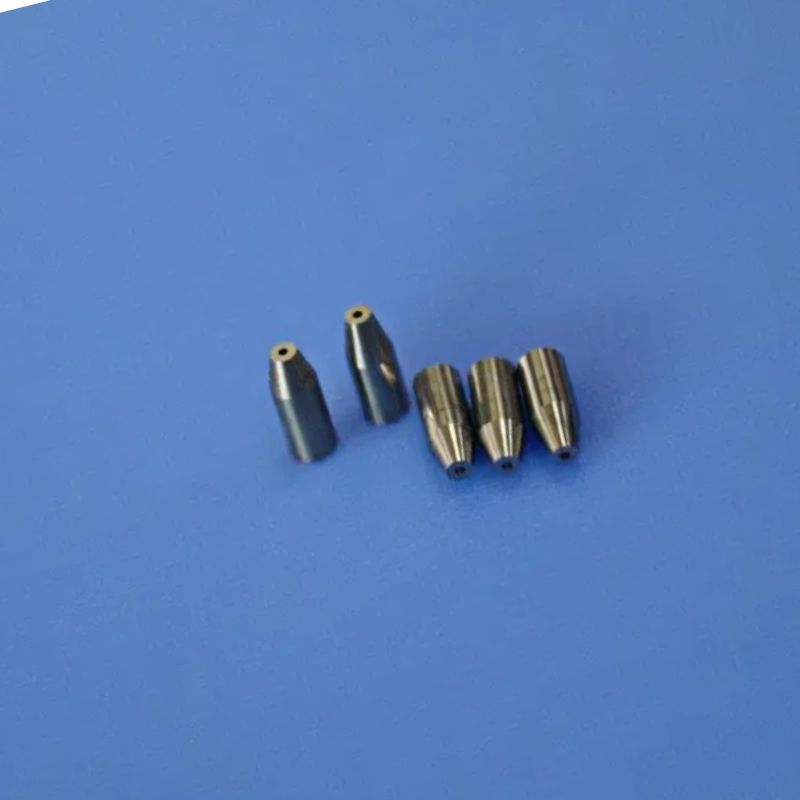

450µm Precision Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
Mirror-finished Flow Channel Treatment 450µm Precision Hard Metal Solder Ball Nozzle
The precision-manufactured 450µm solder ball nozzle, through nano-scale aperture processing and mirror-finished flow channel treatment, completely solves the wear and clogging problems of multi-material nozzles, achieving non-clogging, wear-free, and long-life precision solder ball jetting in the field of microelectronics welding.
Structure
  • Aperture Accuracy: 450µm ± 1µm (Laser Test Certified)
  • Structural Features:
    • Monolithic, one-piece construction (seamless, uncoated)
    • Mirror-polished flow channel (Ra ≤ 0.1µm)
    • Optimized 15° flow cone angle
  • Thermal Management:
    • Thermal conductivity 85 W/m*K
    • Thermal expansion coefficient 4.5*10⁻⁶/K
Performance Comparison
The absolute advantage of integral tungsten carbide nozzles
Performance Specifications Carbide Integral Nozzle Stainless Steel Nozzle Ceramic Nozzle Advantages
Service Life 2,000,000+ cycles 300,000 cycles 800,000 cycles 150% increase in service life
Aperture Stability ±1µm ±5µm ±3µm 300% increase in accuracy
Thermal Deflection ≤0.001mm 0.015mm 0.005mm 5x increase in stability
Maintenance Cost No maintenance required Frequent replacement Regular replacement 70% cost reduction
Core Manufacturing Processes
  1. Precision Drilling Technology
    • Micro-hole EDM
    • Aperture Accuracy ±1µm
    • Roundness ≤0.5µm
  2. Mirror Polishing
    • Diamond Paste Polishing
    • Flow Channel Roughness Ra ≤0.1µm
    • Electrolytic Polishing for Deburring
  3. Quality Inspection System
    • Full Inspection with Industrial Endoscopes
    • Laser Aperture Measurement
    • Flow Testing Verification
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 0
