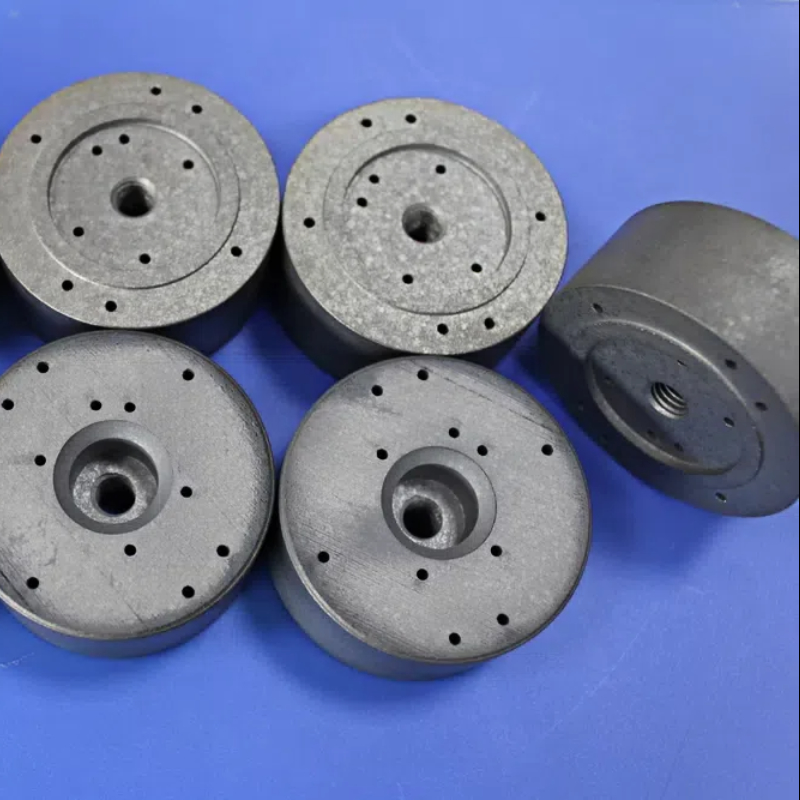

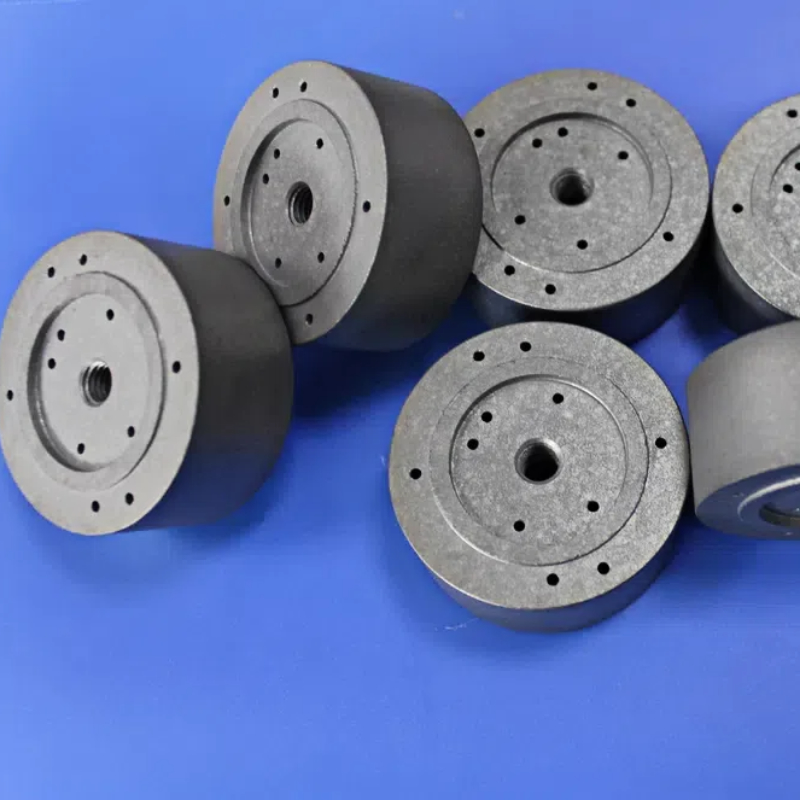

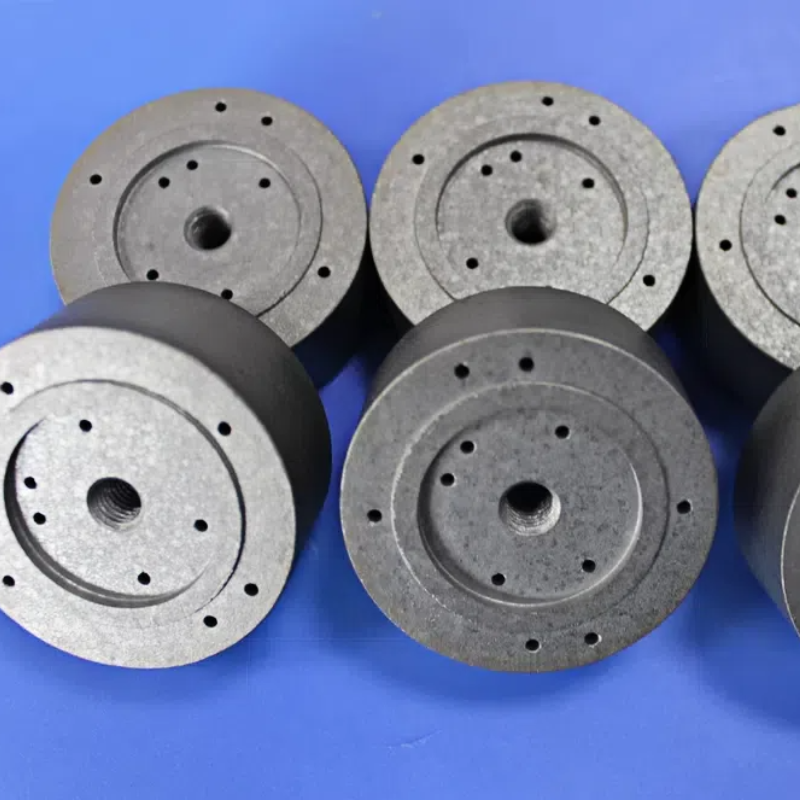

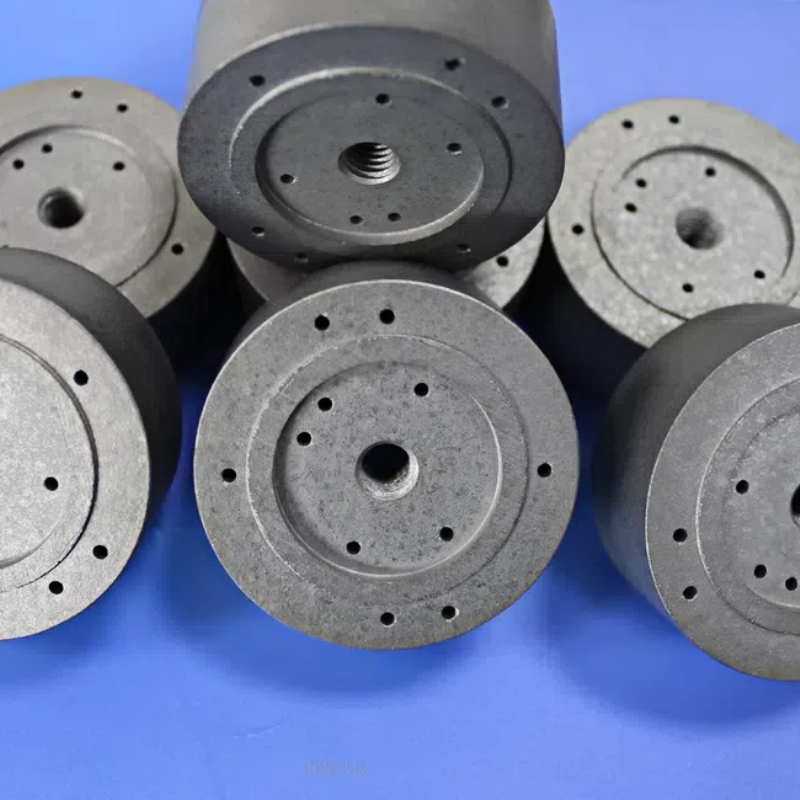

Precision Tungsten Carbide Blank with Density ≥14.8g/cm³ for High Density Rotor Core Material
Precision Tungsten Carbide Blank with Density ≥14.8g/cm³ for High Density Rotor Core Material Precision Tungsten Carbide Blank with Density ≥14.8g/cm³ for High Density Rotor Core Material Precision Tungsten Carbide Blank with Density ≥14.8g/cm³ for High Density Rotor Core Material Precision Tungsten Carbide Blank with Density ≥14.8g/cm³ for High Density Rotor Core Material

Precision Tungsten Carbide Blank with Density ≥14.8g/cm³ for High Density Rotor Core Material

Detail produk:
Tempat asal: zhuzhou, Cina
Nama merek: Sanxin
Nomor model: SX1272
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 5
Waktu pengiriman: 5-25 hari
Syarat-syarat pembayaran: L/C,T/T,Western Union
Hubungi sekarang
  • Informasi Detail
  • Deskripsi Produk

Informasi Detail
Kelas Karbida: Berbagai Kelas Konduktivitas Listrik: 0,1% IACS
Jangka hidup: Panjang Suhu pendinginan: 1400 - 1600°C
Fitur: Pakai ketahanan Permukaan Selesai: Halus, Mengkilap
jenis produk: Bahan industri Aplikasi: Alat pemotong, suku cadang aus, alat pertambangan
Tingkat keausan: Kurang dari 0,1 mm³/MJ Bahan: Tungsten Carbide
Presisi: 0,001 - 0,01 mm
Menyoroti:

Density ≥14.8g/cm³ Tungsten Carbide Blank

,

Precision Rotor Core Material

,

High Density Tungsten Carbide Blank

Deskripsi Produk

Precision Blank Density ≥14.8g/cm³ Core Material For Manufacturing Special Motor Rotors
The rotor cavity blank prepared using WC-Ni-based non-magnetic tungsten carbide material, through isostatic pressing and non-magnetic formulation technology, provides a high-quality base material with zero magnetic interference, high density, and near-net-shape forming for subsequent processing of rotors of high-speed motors and precision instruments, solving the problems of magnetic loss and processing deformation in the manufacturing of precision rotors using traditional materials.
Material Science
  • Material Composition: 90% WC + 10% Ni (Non-magnetic formula)
  • Magnetic Properties: Permeability < 1.001, Remanence < 0.02 mT
Physical Properties
  • Density: 14.8-15.1 g/cm³
  • Hardness: 90-92 HRA (Sintered State)
  • Coefficient of Thermal Expansion: 5.3 * 10⁻⁶/K
Processing Characteristics
  • Isostatic Pressing Density Uniformity: > 99%
  • Controllable Sintering Shrinkage: 12.5 ± 0.3%
  • Machining Allowance: 0.5-1.0 mm per side
Blank Specifications
Cavity Types
  • Cylindrical Cavity: Φ10-100mm
  • Stepped Cavity: Multi-level complex structure
  • Irregular Cavity: Custom-made according to drawings
Dimensional Accuracy
  • External Tolerance: ±0.1mm
  • Cavity Position Accuracy: ±0.05mm
  • Blank Weight: 50-2000g
Product Specifications
Parameter Type Standard Range Accuracy Class Inspection Method
Outer Diameter of Blank Φ20-150mm ±0.1mm Digital Calibrator
Cavity Diameter Φ10-120mm ±0.15mm Coordinate Measuring
Height of Blank 20-100mm ±0.2mm Height Gauge Inspection
Weight Deviation ±1% ±0.5% Precision Balance
Density Uniformity >99% >99.5% Water Immersion Test
The data in the table is for reference only; custom drawings are available upon request.
Applications
Aerospace
  • Satellite attitude control flywheel rotors
  • High-speed rotors for aircraft motors
  • Gyro rotors for navigation systems
Medical Equipment
  • MRI equipment drive rotors
  • Centrifuge core rotors
  • Special rotors for medical pumps
Precision Industry
  • High-speed electric spindle rotors
  • Precision instrument balancing rotors
  • Core rotors for special motors
High-end Scientific Research
  • Low-temperature experimental equipment rotors
  • High-vacuum environment rotors
  • Precision measuring instrument rotors
