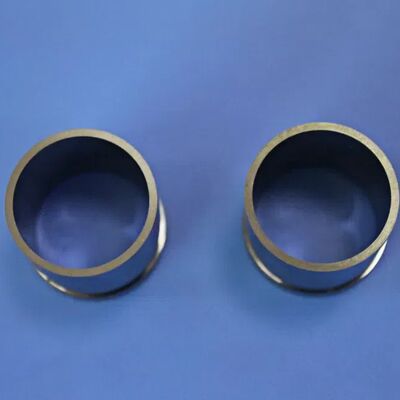

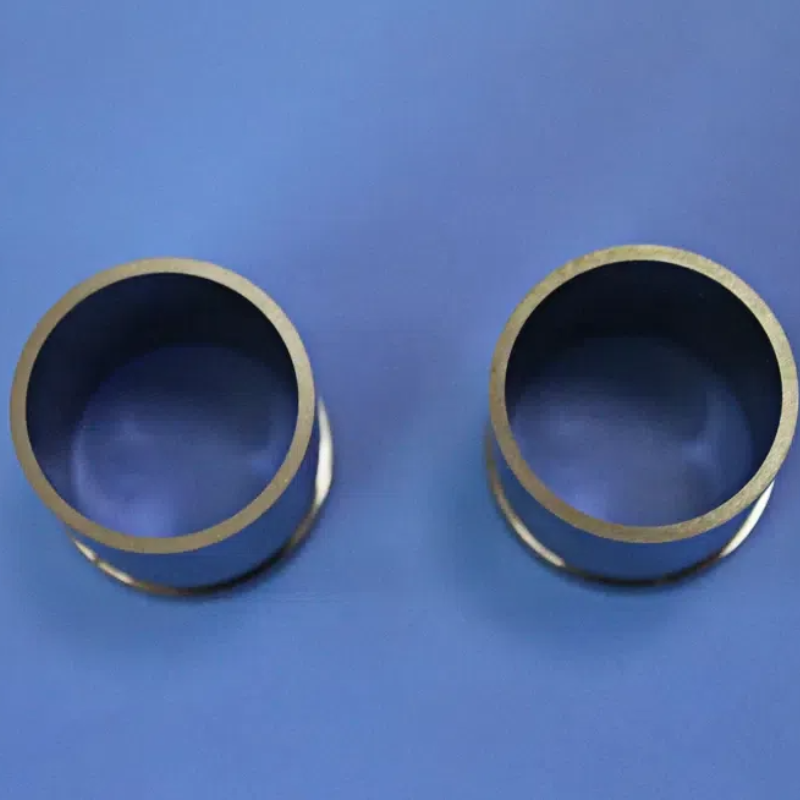

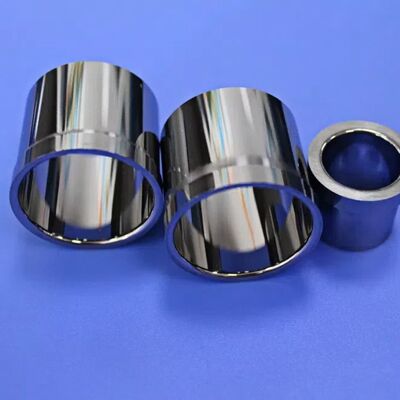

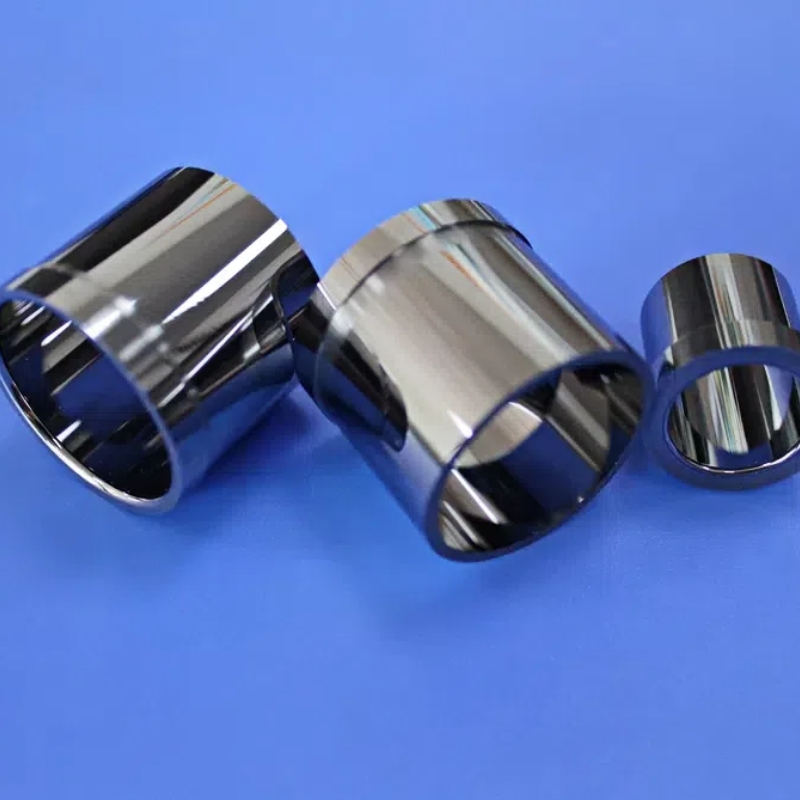

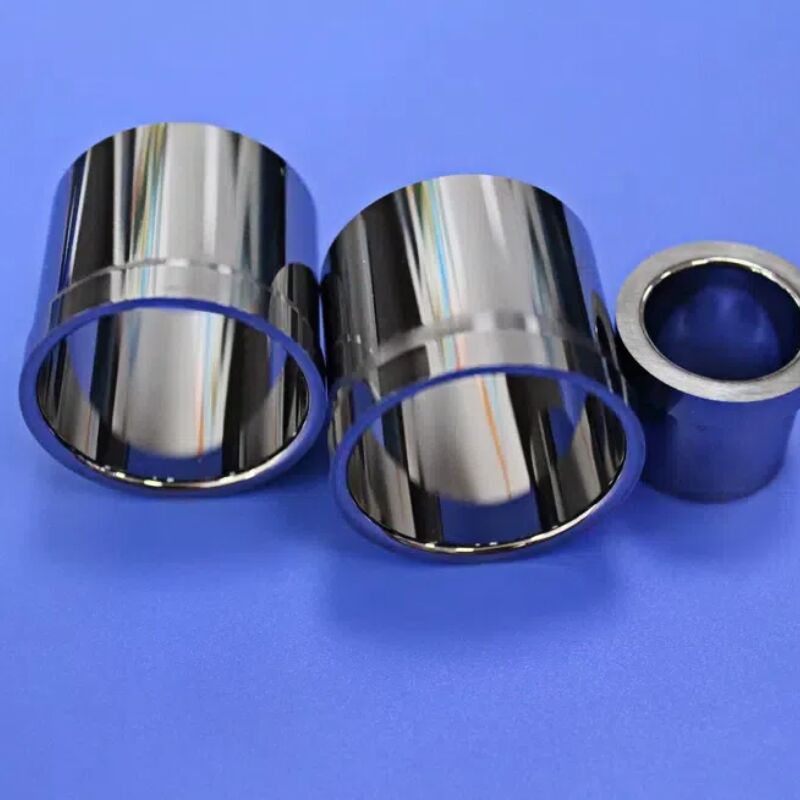

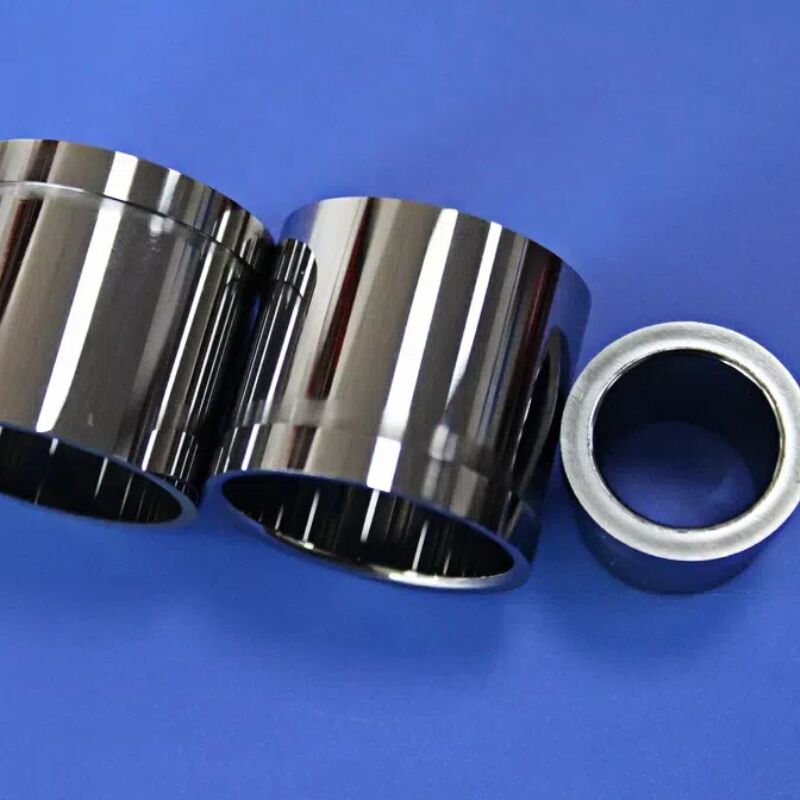

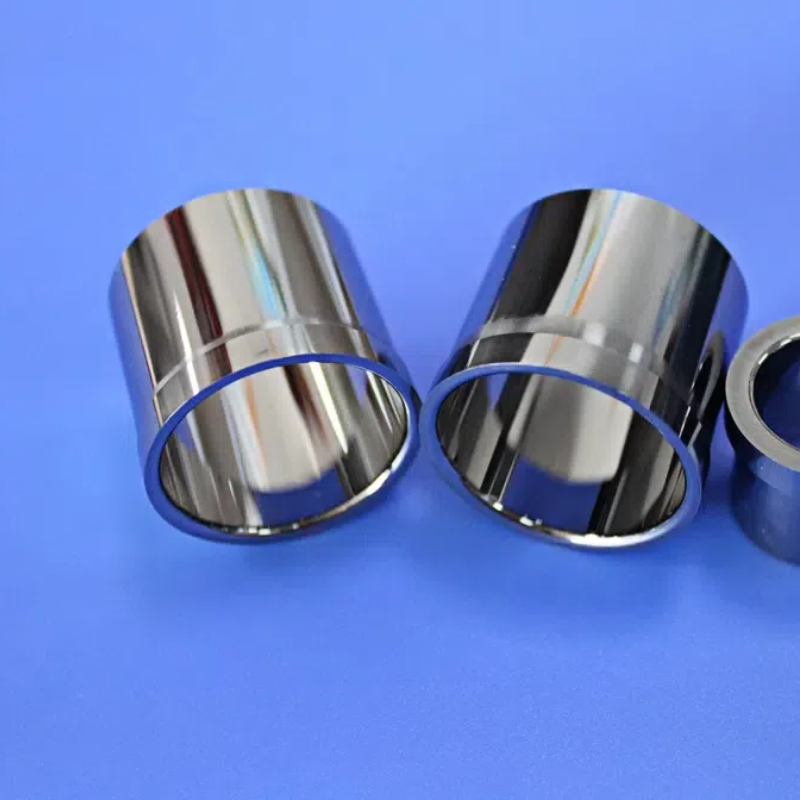

WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications
WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications

WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications

Detail produk:
Tempat asal: Cina
Nama merek: Sanxin
Sertifikasi: ISO 9001:2015
Nomor model: SX1281
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2
Kemasan rincian: Kotak kardus
Waktu pengiriman: 5-25 hari
Syarat-syarat pembayaran: L/C,T/T,Western Union
Hubungi sekarang
  • Informasi Detail
  • Deskripsi Produk

Informasi Detail
Jenis Bisnis: Pabrikan bahan: 100% Bahan asli
Membentuk: berbagai bentuk saat menggambar ukuran butir: Skala submikron ke mikron
Kecepatan Operasi: Kemampuan kecepatan potong tinggi Kebiasaan: Ya
Permukaan Selesai: Halus, Mengkilap, Poles cermin Penyelesaian permukaan: Dihancurkan dan dipoles
tahan panas: Hingga 1000 ° C. Pengolahan: Presisi tinggi
Kelas Karbida: K10, K20, K30, dst. Nama Produk: Alat Karbida Semen
Aplikasi: Tahan aus, tahan korosi Jenis Produk: alat
Menyoroti:

Permeability <1.002 Precision Locating Component

,

Inner Bore Tolerance ±0.001mm Carbide Inner Diameter Ring

,

Zero Magnetic Interference Non-Magnetic ID Ring

Deskripsi Produk

WC-Ni Zero Magnetic Interference Precision Locating Component For Semiconductor & Medical
WC-Ni Zero Magnetic Interference Precision Locating Component For Semiconductor & Medical
-- --Permeability <1.002 * Inner Bore Tolerance ±0.001mm * MRI & Semiconductor Grade
When Precision Location Meets Magnetic Field Interference
Engineered with a WC-Ni zero-magnetic formulation, our carbide inner diameter rings deliver absolute magnetic immunity (Permeability <1.002) and sub-micron bore accuracy. They are the ultimate solution for precision fixturing, guiding, and sealing in MRI equipment, semiconductor wafer handling, and aerospace systems, eliminating the risks of magnetic attraction and positional drift inherent in conventional materials.
Advanced Material Technology:
  • Base Material: WC-10Ni Zero-Magnetic Grade Carbide
  • Magnetic Properties:
    • Permeability (μ): <1.002
    • Remanence (Br): <0.03 mT
    • Coercivity (Hc): <10 A/m
  • Physical & Mechanical Properties:
    • Hardness: 90 - 92 HRA (Equivalent to 1750-1850 HV)
    • Density: 14.8 - 15.0 g/cm³
    • Thermal Expansion Coefficient: 5.5 × 10⁻⁶ /K
    • Compressive Strength: >4500 MPa
Performance Comparison:
Parameter Our Non-Magnetic ID Ring Stainless Steel 316 Ring Standard Carbide Ring Key Advantage
Permeability (μ) < 1.002 ~1.02 - 1.05 ~1.5 - 2.0 Zero Magnetic Pull Force
ID Tolerance ± 0.001mm (H5) ±0.01mm (IT7) ±0.005mm (H6) 10x Higher Precision
Wear Life > 5x Longer Baseline 2x Longer Maximizes Uptime
Thermal Stability 0.001mm/100 °C 0.012mm/100°C 0.003mm/100°C Stable in Thermal Cycles
Corrosion Resistance Excellent Good Good Suitable for Harsh Media
Target Industries & Applications:
Semiconductor & Electronics
  • Wafer Handling & Alignment: Precision locating rings in wafer chucks and stages.
  • Vacuum Robotics: Wear-resistant, non-magnetic bushings for EFEM and transfer robots.
  • Metrology Equipment: Reference rings for precision measuring instruments.
Medical & Life Sciences
  • MRI & CT Scanner Components: Non-magnetic guides, bearings, and spacers inside the bore.
  • Surgical Robotics: Precision joints and articulation rings requiring zero EMI.
  • Analytical Instruments: Sample holders and rotors in mass spectrometers.
Aerospace & Defense
  • Guidance System Components: Stable, non-magnetic housings and spacers.
  • Satellite Mechanisms: Bearings and isolation rings for reaction wheels and antennas.
High-End Research
  • Particle Physics: Beamline components and experimental fixtures.
  • Materials Science: Fixtures for sputtering systems and vacuum furnaces.
WC-Ni Zero Magnetic Interference Precision Locating Component with Permeability <1.002 and Inner Bore Tolerance ±0.001mm for MRI & Semiconductor Applications 0
